NSK

VarioSurg Series

VarioSurg Series

£11,617.14
£11,617.14
Sale Sold out
Tax included. Shipping calculated at checkout.
Model Options

Technology & Function

  • BURST Mode
    BURST Mode

    You can switch modes instantly from Surg Mode to Burst Mode even during the procedure. Burst Mode creates a hammer drill effect capable of cutting through even the hardest tissues. Select any of three types of Burst Mode according to the procedure and the condition of the bone.

  • Foot Control
    Foot Control

    The VarioSurg3 foot control conforms with the IPX8 standard for medical foot control systems. All functions are clearly marked and allow accurate and hands-free operation of the unit within the pre-set parameters. Using the metal bar the foot control can easily be re-positioned at any time.

  • LED
    LED

    Switch effortlessly between three levels of light intensity to suit the procedure.

  • Tip
    Tip

    We maximize the sharpness of our tips through three-dimensional cutting (toothing) of the blade's edge.

  • Link
    Link

    You can operate both the implant motor Surgic Pro and VarioSurg3 ultrasonic bone surgery system with a single foot control by linking the two units with the link cable. Put the two units on the Link Stand and create a compact and space saving, all encompassing surgical treatment centre. The two systems can also be installed together compactly with a Link Stand that takes up minimal space.

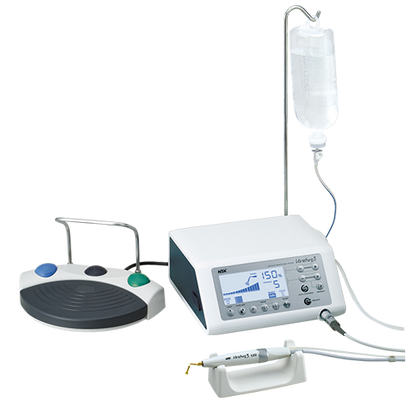

    VarioSurg 3

    VarioSurg3

    VarioSurg3 Complete Sets

    • Optic
    • Model:VarioSurg3 (120 V)
    • Order Code:Y1002725
    • Optic
    • Model:VarioSurg3 (230 V)
    • Order Code:Y1002726

    Content - VarioSurg3

    • Control Unit
    • LED Handpiece with 2m Cord
    • FC-78 Foot Control
    • Sterilisation Cassette
    • Handpiece Stand
    • Irrigation Tube (5 pcs) and Other Accessories
    • Basic H-S Kit (H-SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip Holder)

    VarioSurg3 Complete Sets without Foot Control

    • Optic
    • Model:VarioSurg3 (120 V) Non FT
    • Order Code:Y1002247
    • Optic
    • Model:VarioSurg3 (230 V) Non FT
    • Order Code:Y1002248

    Content - VarioSurg3 Non FT

    • Control Unit
    • LED Handpiece with 2m Cord
    • Sterilization Cassette
    • Handpiece Stand
    • Irrigation tube (5 pcs) and Other Accessories
    • Basic H-S Kit (H-SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip Holder)

    Specifications - Control Unit

    • Frequency
    • 28-32 kHz
    • Power Supply
    • AC120 V or 230 V 50/60 Hz
    • Irrigation Flow Rate
    • 10-75 mL / min
    • Programs
    • SURG x 5, ENDO x 2, PERIO x 2
    • Dimensions
    • W 265 x D 220 x H 100 mm

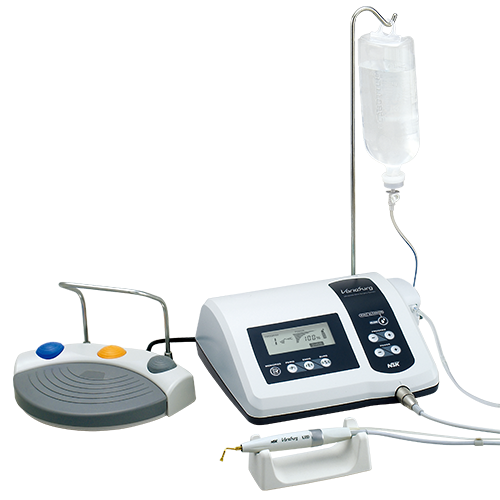

    VarioSurg

    VarioSurg

    VarioSurg Complete Sets with LED Handpiece

    • Optic
    • Model:VSRG OPT (120 V)
    • Order Code:Y1001928
    • Optic
    • Model:VSRG OPT (230 V)
    • Order Code:Y1001929

    Contents - VSRG OPT

    • Control Unit
    • LED Handpiece with 2m Cord
    • FC-51 Foot Control
    • Sterilisation Cassette
    • Handpiece Stand
    • Irrigation Tube (5 pcs) and Other Accessories
    • Basic-S Kit (SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip Holder)

    VarioSurg Complete Sets with Non-Optic Handpiece

    • Non-Optic
    • Model:VSRG NON-OPT(120 V)
    • Order Code:Y1001939
    • Non-Optic
    • Model:VSRG NON-OPT(230 V)
    • Order Code:Y1001940

    Contents - VSRG NON-OPT

    • Control Unit
    • Non-Optic Handpiece with 2m Cord
    • FC-51 Foot Control
    • Sterilisation Cassette
    • Handpiece Stand
    • Irrigation Tube (5 pcs.) and Other Accessories
    • Basic-S Kit (SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip Holder)

    Specifications

    • Frequency
    • 28-32 kHz
    • Power Supply
    • AC 120 V or 230 V 50/60 Hz
    • Irrigation Flow Rate
    • 9-90 mL / min
    • Programs
    • SURG x 5, ENDO x 2, PERIO x 2
    • Dimensions
    • W 268 x D 230 x H 103 mm
    • Foot Control Functions
    • ON-OFF Switch for Water Flow, PROGRAM (+) Switch, PROGRAM (-) Switch Vibration ON-OFF Switch
