nano Series
nano Series
Shorter, Perfectly Balanced
Lighter and perfectly balanced, "nano series" instruments are designed to be natural extensions of the clinician’s hand, ensuring smoother procedures. Even during implant operations that require delicate and precise movements, a "nano series" faithfully mirrors the user’s intent. NSK continues to challenge the limits of manufacturing and pioneer next-generation contra-angles.
Technology & Function
-
Smart Miniaturization Enables Perfect Balance
NSK's nano series preserves the high performance NSK contra-angles are known for, while these new instruments are approximately 10 percent smaller and lighter than conventional models. Yet, in combination with NLX nano micromotor nano series gives you the ease of manoeuvrability and accuracy you are used to from your air-turbine.
-
Perfect Balance
Reducing size and weight shifts the center of gravity to an optimal position, dramatically reducing fatigue during procedures and improving your fingertip dexterity.
-
Smaller and Slimmer
nano95LS has smaller head and slimmer neck dimensions.
-
Microfilter
Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.
-
Titanium Body
Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
*Titanium is used only for the exterior parts, and not for the interior.

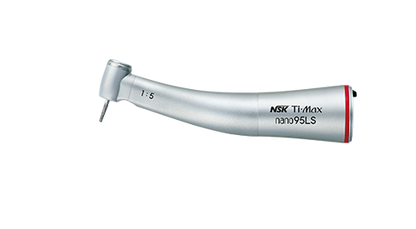

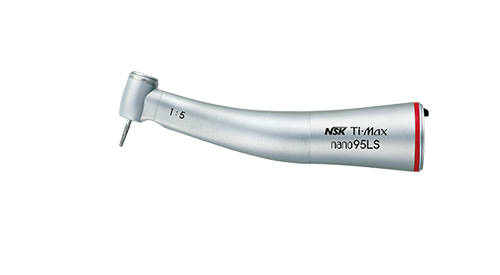

nano95LS 1:5
- Optic
- Model:nano95LS
- Order Code:C1099
Specifications
- Gear Ratio
- 1:5 Increasing
- For
- FG Burs (Ø1.6)
- Water Spray
- Quattro Spray
- Body Material
- Titanium
- Body Coating
- DURAGRIP
- Max Speed
- 200,000 min-1
Features
- Anti Heat System
- Cellular Glass Optics
- Ceramic Bearings
- Clean Head System
- Push Button Chuck
- Microfilter
- Exceptional Durability

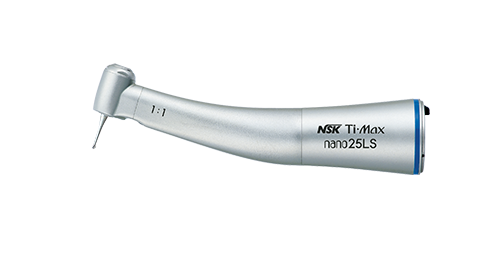

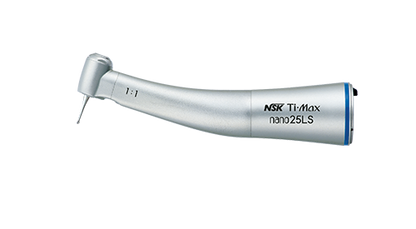

nano25LS 1:1
- Optic
- Model:nano25LS
- Order Code:C1100
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- For CA Burs (Ø2.35)
- Water Spray
- Single Spray
- Body Material
- Titanium
- Body Coating
- DURAGRIP
- Max Speed
- 40,000 min-1
Features
- Anti Heat System
- Cellular Glass Optics
- Clean Head System
- Push Button Chuck
- Microfilter

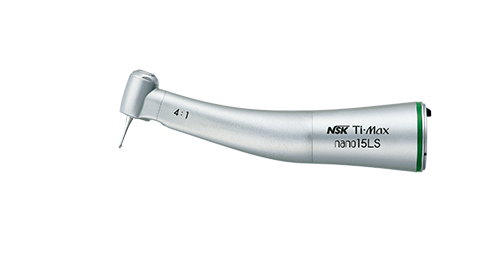

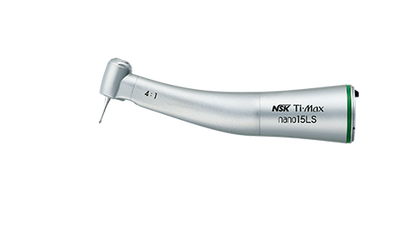

nano15LS 4:1
- Optic
- Model:nano15LS
- Order Code:C1101
Specifications
- Gear Ratio
- 4:1 Reduction
- For
- For CA Burs (Ø2.35)
- Water Spray
- Single Spray
- Body Material
- Titanium
- Body Coating
- DURAGRIP
- Max Speed
- 10,000 min-1
Features
- Anti Heat System
- Cellular Glass Optics
- Clean Head System
- Push Button Chuck
- Microfilter

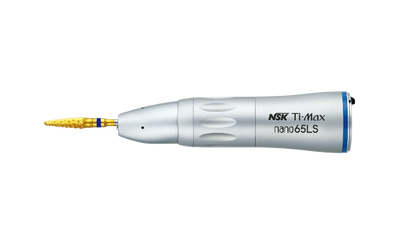

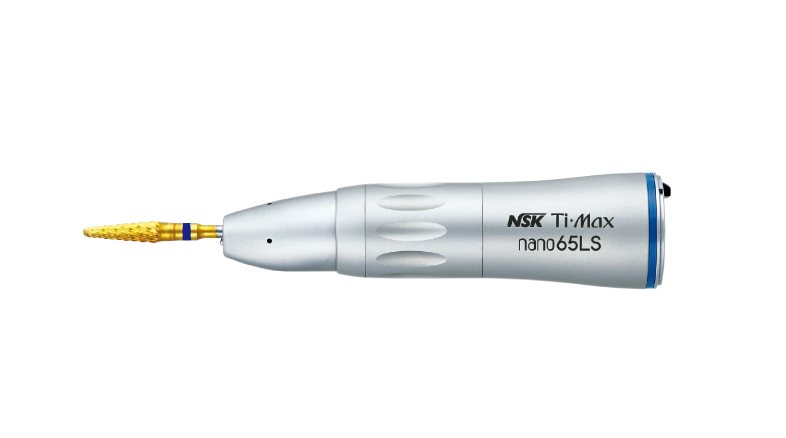

nano65LS 1:1
- Optic
- Model:nano65LS
- Order Code:H1048
Specifications
- Gear Ratio
- 1:1 Direct Drive
- For
- For HP / CA Burs (Ø2.35)*
- Water Spray
- Single Spray
- Body Material
- Titanium
- Body Coating
- DURAGRIP
- Max Speed
- 40,000 min-1
* Need to insert the supplied bur stopper
Features
- Cellular Glass Optics
- Clean Head System
