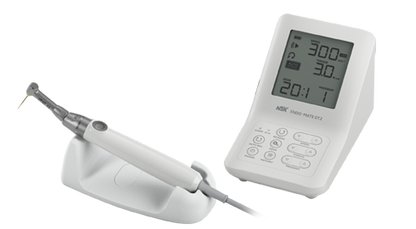

ENDO-MATE DT2
ENDO-MATE DT2
ENDO-MATE DT2 has been developed for use with most major brands of Ni-Ti files.
The preprogramming function allows highly efficient treatments using different file manufacturer's protocols.
The control unit has been designed to be lightweight and compact.
It is fitted with a rechargeable battery providing high mobility. The lightweight and slim handpiece allows easy and comfortable handling for high performance.
Technology & Function
-
2 way power source
ENDO-MATE DT2 has been designed to work with a rechargeable battery for portable use or can be powered using the AC adaptor supplied.
-
Push type ultra miniature head
Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of treatment spots.
-
Compatible all popular brands of Ni-Ti files
Compatible all popular brands of Ni-Ti files.
Up to 9 settings (speed and torque etc) can be programmed simply by pushing the memory function button. It's easy to switch between each preset program allowing work with all popular Ni-Ti file manufacturer's protocols. -
6 head angles for ease of treatment
Depending on the position of treatment site, the head angle can be adjusted to the best angle.
-
Quick coupling
Quick coupling allows for easy head exchange.
All heads are autoclavable up to 135˚C. -
2-way ON/OFF switch
Features are :
A: Push and release
- Micromotor operates continuously until the button is pushed again.
B: Push and hold
- Micromotor operates continuously until the buton is released.
ENDO-MATE DT2
ENDO-MATE DT2 with 20:1 Head
- Model:ENDO-MATE DT2 (230V)
- Order Code:Y1004230
Contents
- Control unit
- Motor and cord
- MP-F20R head (20:1)
- Handpiece stand
- AC adaptor
ENDO-MATE DT2 without Head
- Model:ENDO-MATE DT2 W/O (230V)
- Order Code:Y1004231
Contents
- Control unit
- Motor and cord
- Handpiece stand
- AC adaptor
Specifications
- Power Supply
- 230V 50/60 Hz and Battery pack
- Number of Programs
- 9
- Max Torque
- 7 Ncm (when using 20:1 head)
- Speed range
- 100-13,000 min-1(With 20:1, 1:1 geared heads)
- Charge/Continuous use
- 5 h / 2 h (depending on workload)
- Dimensions
- W 93 x D 147 x H 100 (mm)
- Weight
- Unit 440 g / Motor handpiece and Cord 95 g
Heads

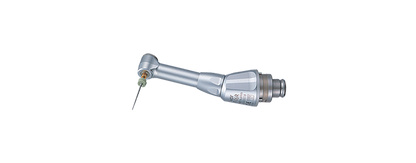

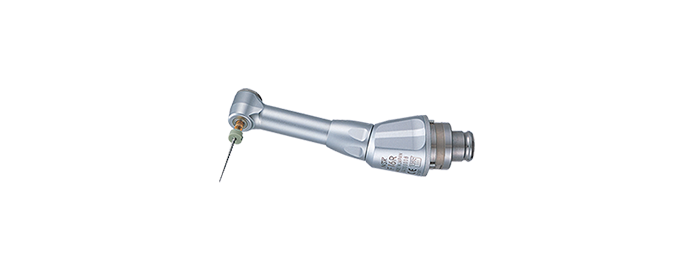

MP-F20R / MP-F16R
-
- Model:MP-F20R
- Order Code:Y110044
- Model:MP-F16R
- Order Code:Y110096
Specifications
- Head
- Miniature Head
- For
- Ni-Ti Files (Ø2.35) / 360° Rotation
- Gear Ratio
- 20:1 / 16:1 Reduction
Features
- Push Button Chuck

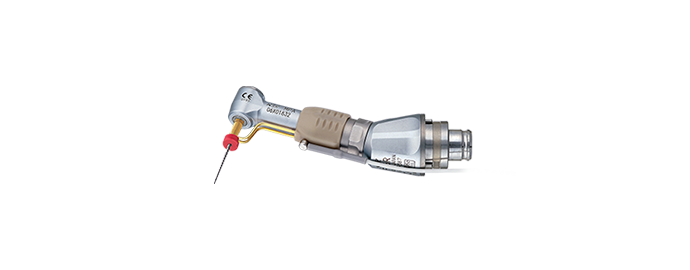

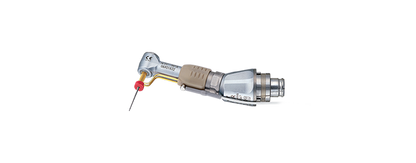

MPA-F16R
-
- Model:MPA-F16R
- Order Code:Y110097
Specifications
- Head
- Miniature Head
- For
- Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Long Shank)
- Gear Ratio
- 16:1 Reduction
Features
- Push Button Chuck

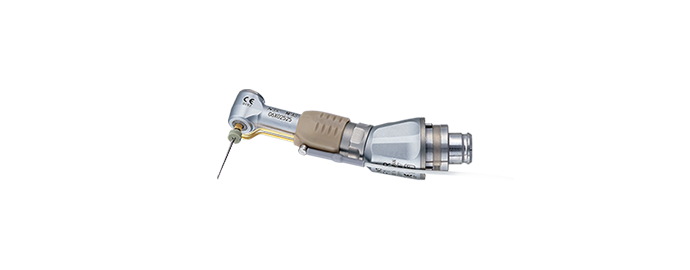

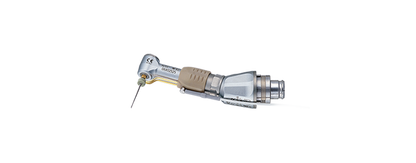

MPAS-F20R / MPAS-F16R
-
- Model:MPAS-F20R
- Order Code:Y110046
- Model:MPAS-F16R
- Order Code:Y110098
Specifications
- Head
- Miniature Head
- For
- Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Short Shank)
- Gear Ratio
- 20:1 / 16:1 Reduction
Features
- Push Button Chuck
